Jenkins: Introduction, Installation & Configuration

What is Jenkins?

Jenkins is an open-source automation server used to automate software development processes such as building, testing, and deploying applications. It is one of the most widely used tools in DevOps and CI/CD pipelines. Jenkins helps development and operations teams automate repetitive tasks and deliver software faster with fewer errors.

Jenkins in DevOps Workflow

Workflow: Developer (Git Push) → GitHub/GitLab Repository → Jenkins Pipeline (Build → Test → Docker Image → Deploy) → Production Environment.

Why Jenkins is Used?

• Continuous Integration (CI): Pulls source code, compiles/builds apps, runs unit tests, and reports errors.
• Continuous Deployment (CD): Automates deployment to AWS, Azure, Kubernetes, Docker, and Virtual Machines.
• Automation: Handles software builds, testing, security scans, deployment, infrastructure provisioning, and monitoring.

Jenkins Architecture

Components:

• Jenkins Controller (Master): Manages jobs, schedules builds, manages plugins, and provides UI.
• Jenkins Agents (Nodes): Machines (Linux/Windows/Docker/K8s) that execute the jobs.
• Jenkins Jobs: Defines source code location, build steps, tests, and deployment.
• Jenkins Plugins: Extends functionality (e.g., Git, Docker, K8s, AWS, Slack).

Jenkins Installation on Ubuntu

System Requirements: 2 Core CPU, 2GB RAM, 20GB Storage, Ubuntu 22.04/24.04, JDK 17.

• Update: sudo apt update && sudo apt upgrade -y
• Java: sudo apt install openjdk-17-jdk -y
• Repo: Import Jenkins key and add source list.
• Install: sudo apt install jenkins -y
• Service: sudo systemctl enable jenkins & sudo systemctl start jenkins
• Firewall: sudo ufw allow 8080
• Access: http://SERVER-IP:8080 & use /var/lib/jenkins/secrets/initialAdminPassword.

Initial Configuration

• Plugins: Select 'Install suggested plugins' (Git, Pipeline, Docker, K8s, Maven, SSH Agent).
• Admin User: Create username, password, and email.

Advanced Configuration

• Java: Configure JDK path in Manage Jenkins > Tools.
• Git: Path to /usr/bin/git.
• Docker: Install docker, add jenkins user to docker group, restart service.
• Credentials: Add GitHub Token, Docker Hub Pass, AWS keys, or SSH keys.

Jenkins Jobs & Pipelines

Freestyle Project: Configure Source Code Management (Git) and Build Steps (Shell scripts).

Pipeline Example:

    pipeline {
        agent any
        stages {
            stage('Build') { steps { echo 'Building Application' } }
            stage('Test') { steps { echo 'Running Tests' } }
            stage('Deploy') { steps { echo 'Deploying Application' } }
        }
    }


Jenkins Security Best Practices

• Enable Authentication (Security settings).
• Use HTTPS/SSL with Nginx Reverse Proxy.
• Restrict user permissions using Role-Based Authorization Strategy.
• Regularly update Jenkins core and plugins.
• Backup directory: /var/lib/jenkins.

Jenkins in DevOps Toolchain

What is Jenkins Architecture?

Jenkins architecture defines how different components work together to automate Continuous Integration (CI) and Continuous Delivery/Deployment (CD) processes. It follows a Controller-Agent architecture where the Controller manages tasks and Agents execute them.

Jenkins Architecture Diagram

    Developer --> Git Repository --> Webhook --> Jenkins Controller (Master)
                                                      |
                                          -------------------------
                                          |           |           |
                                     Agent Node   Agent Node  Agent Node
                                      (Linux)     (Docker)       (K8s)
                                          |           |           |
                                        Build       Testing    Deployment
                                                      |
                                            Production Environment


1. Jenkins Controller (Master)

The central component managing the environment.

• Job Scheduling: Receives build requests and allocates agents.
• Pipeline Management: Manages build stages and workflow execution.
• Plugin Management: Extends functionality (Git, Docker, K8s, AWS, Pipeline plugins).
• Security Management: Handles authentication, authorization, and credentials.

2. Jenkins Agent (Worker Node)

Machines that execute the actual build tasks (Source code checkout, compilation, testing, docker image creation, deployment).

• Static Agent: Permanent servers (e.g., Ubuntu Server).
• Dynamic Agent: Created on-demand (e.g., AWS EC2, Docker containers, Kubernetes pods).

Core Components

• Jenkins Jobs: Defines tasks (Freestyle GUI jobs or Pipeline script-based jobs).
• Jenkins Pipeline: Represents the complete CI/CD workflow (Build → Test → Deploy).
• Jenkins Workspace: Directory (/var/lib/jenkins/workspace/) for source code and build artifacts.
• Jenkins Executor: Processing slots on a node that run specific jobs.
• Database/Config: Stores config.xml, jobs/, plugins/, and credentials.xml.

Communication Methods

• SSH: Common for Linux-based agents.
• JNLP/WebSocket: Used for Cloud and Kubernetes-based agents.

Real-World Scenarios

AWS Example

    Internet --> Load Balancer --> Jenkins Server (EC2)
                                        |
                            --------------------------
                            |           |            |
                        EC2 Agent    Docker Agent   EKS Cluster


Jenkins Architecture Summary

Benefits: Scalable build environment, supports distributed builds, reduces deployment time, and automates complete CI/CD lifecycles.

Pipeline as Code in Jenkins

What is Pipeline as Code?

Pipeline as Code is a DevOps practice where the entire CI/CD pipeline configuration is written as a code file and stored along with the application source code in a version control system such as GitHub or GitLab. In Jenkins, this is implemented using a file called Jenkinsfile.

Instead of manually configuring Jenkins jobs through the web interface, developers define build, test, and deployment steps in a script.

Traditional Jenkins Job vs Pipeline as Code

Traditional Jenkins Configuration

Steps: Jenkins UI → Create Job → Configure Build Steps → Add Credentials → Configure Deployment → Save.

Problems: Manual configuration, difficult to track changes, not easy to migrate, configuration drift risk.

Pipeline as Code

Flow: Developer → Git Repository → Jenkinsfile → Jenkins Pipeline → Build → Test → Deploy.

Advantages: Version controlled, Repeatable, Automated, Easy collaboration.

Jenkinsfile

A Jenkinsfile is a text file written in Groovy-based syntax that defines the Jenkins pipeline workflow.

Repository structure:

    my-application/
    │
    ├── src/
    ├── Dockerfile
    ├── package.json
    └── Jenkinsfile


Types of Jenkins Pipeline

• 1. Declarative Pipeline: Simple and recommended approach.
• 2. Scripted Pipeline: More flexible and advanced.

Jenkins Pipeline Structure

A Jenkinsfile contains these sections: pipeline, agent, environment, stages, steps, post.

• Agent: Defines where the pipeline runs (e.g., agent any).
• Environment: Stores variables like APP_NAME.
• Stages: Logical sections (Checkout, Build, Test, Package, Deploy).
• Steps: Contain actual commands (e.g., sh 'mvn clean package').
• Post Actions: Runs after completion (e.g., success/failure logs).

Complete Java Application CI/CD Pipeline

    pipeline {
        agent any
        environment { IMAGE_NAME = "myapp" }
        stages {
            stage('Checkout') { steps { git 'https://github.com/user/project.git' } }
            stage('Build') { steps { sh 'mvn clean package' } }
            stage('Testing') { steps { sh 'mvn test' } }
            stage('Docker Build') { steps { sh 'docker build -t $IMAGE_NAME .' } }
            stage('Deploy') { steps { sh 'docker run -d -p 8080:8080 $IMAGE_NAME' } }
        }
        post {
            success { echo "Application deployed successfully" }
            failure { echo "Deployment failed" }
        }
    }


Pipeline as Code Workflow

Pipelines with Docker & Kubernetes

Docker Example:

    stage('Docker Build') { steps { sh 'docker build -t webapp .' } }
    stage('Docker Run') { steps { sh 'docker run -d -p 80:80 webapp' } }


Kubernetes Example:

    stage('Deploy Kubernetes') { steps { sh 'kubectl apply -f deployment.yaml' } }


Pipeline as Code Best Practices

1. Store Jenkinsfile in Git: Keep it in the project root.
2. Credentials Management: Never store passwords inside Jenkinsfile.
3. Code Review: Use Pull Request workflow for pipeline changes.
4. Shared Libraries: Create a Jenkins Shared Library for reusable functions.

Pipeline as Code Benefits Table

Pipeline as Code in DevOps Toolchain

Summary: Pipeline as Code allows DevOps teams to define CI/CD workflows as software code using a Jenkinsfile. It provides automation, version control, repeatability, and collaboration, making it a fundamental practice in modern DevOps environments.

Jenkins Shared Libraries

What are Jenkins Shared Libraries?

Jenkins Shared Libraries allow you to create reusable pipeline code that can be shared across multiple projects and teams. Instead of writing the same scripts repeatedly, teams create common functions in a centralized library.

Why Use Jenkins Shared Libraries?

Problems without Shared Libraries: Duplicate code, difficult maintenance, and inconsistent standards.

Benefits with Shared Libraries: Write once, reuse everywhere; Centralized CI/CD logic; Faster development; Easier maintenance.

Jenkins Shared Library Architecture

    jenkins-shared-library/
    ├── vars/        # Reusable pipeline steps
    ├── src/         # Helper Groovy classes
    ├── resources/   # Config/Template files
    └── README.md


Main Components

• vars/: Contains .groovy files for global pipeline steps. Usage: deployApp("prod").
• src/: Contains Groovy classes for complex logic (e.g., com.company.Utils).
• resources/: Stores static templates like deployment.yaml.

Creating Shared Library

1. Create Git Repo: e.g., github.com/company/jenkins-shared-library
2. Create Function: Inside vars/buildApp.groovy.
3. Configure Jenkins: Manage Jenkins → System Configuration → Global Pipeline Libraries.

Usage in Jenkinsfile

    @Library('company-library') _
    pipeline {
        agent any
        stages {
            stage('Build') {
                steps { buildApp() }
            }
        }
    }


Types of Jenkins Shared Libraries

• Global: Available to all jobs.
• Folder-Level: Scoped to a specific Jenkins folder.
• Project-Level: Loaded per pipeline.

Best Practices

• Keep functions small and specific.
• Always use version tags (e.g., @Library('lib@v1.0')).
• Document every function in README.md.
• Use withCredentials for security.

Advantages Table

Shared Library with DevOps Tools

Summary: Jenkins Shared Libraries provide a centralized, scalable method to standardize automation across modern DevOps environments.

GitHub Integration with Jenkins

1. What is GitHub Integration?

GitHub Integration with Jenkins enables the automation of the CI/CD pipeline. By connecting these two, Jenkins listens for events from GitHub (like a code push). Once triggered, Jenkins performs automated tasks like cloning, building, testing, and deploying the application, ensuring that code quality is maintained automatically.

2. Jenkins + GitHub CI/CD Workflow

The workflow follows a trigger-based approach: The developer pushes code to the GitHub Repository, which sends a notification via Webhook to the Jenkins Server. Jenkins then performs the following: Checkout Code → Build → Run Tests → Build Docker Image → Deploy to Server.

3. Benefits of Integration

4. Requirements

Before beginning, ensure you have:

• Jenkins Server: Accessible on port 8080 with Java installed.
• GitHub Account: Active repository with source code.
• Essential Plugins: Git Plugin, GitHub Plugin, GitHub API Plugin, and Pipeline Plugin.

5. Detailed Setup Guide

Step-by-Step Configuration:

1. Install Git: Run sudo apt install git -y on your Jenkins server.
2. Install Plugins: Go to Manage Jenkins → Manage Plugins and install the GitHub suite.
3. Authentication: Generate a Personal Access Token (PAT) in GitHub under Developer Settings with repo and admin:repo_hook permissions.
4. Add Credentials: In Jenkins, navigate to Credentials → Global Credentials and add your GitHub username and Token.
5. Create Pipeline: Create a new Pipeline item. Select Pipeline script from SCM and provide your repo URL and credentials.

6. Configuring GitHub Webhook

A Webhook allows GitHub to push notifications to Jenkins automatically. In your GitHub Repository settings, navigate to Webhooks and add the Payload URL: http://YOUR-JENKINS-IP:8080/github-webhook/. Ensure Content Type is set to application/json.

7. Best Practices

• SSH Keys: Prefer SSH keys over tokens for higher security.
• Protect Main Branch: Enable branch protection rules in GitHub to require Pull Request approvals and successful CI status checks.
• Secure Secrets: Never store API keys or passwords in the Jenkinsfile; use the Jenkins Credentials Manager.

8. Real-World DevOps Architecture

In enterprise environments, this integration connects the developer to the cloud. By pushing a commit, the developer initiates a chain: Jenkins → Docker Build → Push to Registry → Kubernetes Deployment → AWS/Azure Cloud.

Summary: GitHub Integration is the standard for modern CI/CD. It allows for reliable, repeatable, and scalable deployments, making it a mandatory skill for all DevOps Engineers.

Build Automation in Jenkins

What is Build Automation?

Build Automation is the process of automatically compiling source code, managing dependencies, running tests, creating packages, and preparing applications for deployment. In Jenkins, this is the core of Continuous Integration (CI).

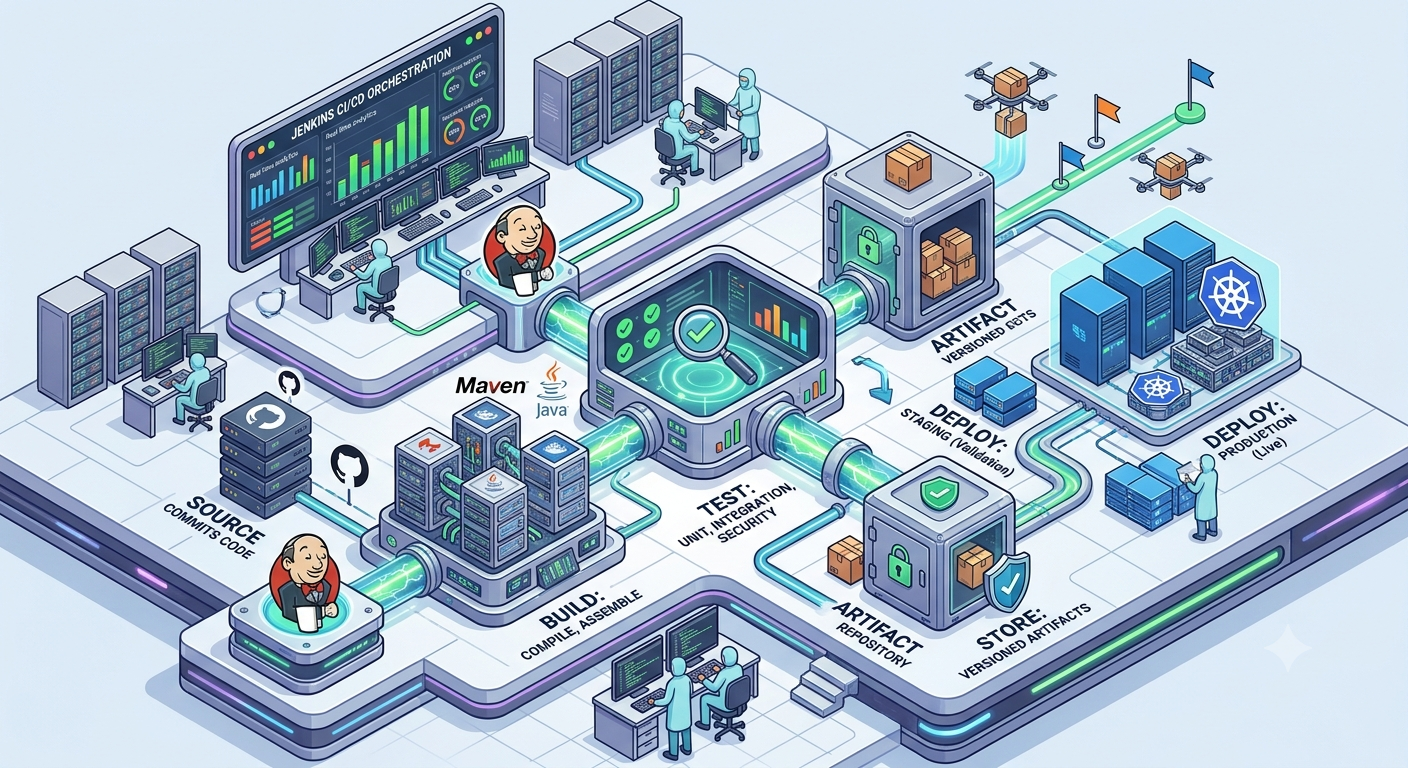

Build Automation Workflow

Workflow: Developer Commit → Git Push → Jenkins Trigger → Checkout → Install Dependencies → Compile → Test → Package → Artifact Creation → Deploy.

Why Build Automation is Required?

Manual builds lead to human errors, slow delivery, and inconsistent environments. Automated builds provide:

• Speed: Faster software delivery cycles.
• Consistency: Repeatable build processes.
• Quality: Early bug detection through automated tests.
• Productivity: Developers focus on code, not build operations.

Jenkins Build Automation Architecture

Jenkins Build Process Stages

1. Source Code Checkout: Jenkins pulls code from Git.

   stage('Checkout') { steps { git 'https://github.com/company/app.git' } }

2. Dependency Installation: Installing libraries (e.g., npm install, mvn install).
3. Compile Source Code: Transforming code into executables (e.g., mvn compile).
4. Automated Tests: Executing unit tests (e.g., mvn test, pytest).
5. Create Build Artifact: Producing the final output (JAR, WAR, or Container Image).
6. Store Artifacts: Archiving files in storage systems like Nexus, Artifactory, or AWS S3.

Artifact Management

Example - Archiving Artifacts in Jenkinsfile:

    post {
        success {
            archiveArtifacts artifacts: '**/*.jar', fingerprint: true
        }
    }


Jenkins Build Job Types

• 1. Freestyle Build: GUI-based configuration, best for simple tasks.
• 2. Pipeline Build: Code-based automation using Jenkinsfile (Highly recommended for DevOps).

Build Automation Tools

Docker Build Automation

Jenkins can automatically create container images:

    stage('Docker Build') {
        steps { sh 'docker build -t webapp .' }
    }


Example: Java Maven Project

    pipeline {
        agent any
        stages {
            stage('Checkout') { steps { git 'https://github.com/company/java-app.git' } }
            stage('Build') { steps { sh 'mvn clean package' } }
            stage('Test') { steps { sh 'mvn test' } }
            stage('Archive') { steps { archiveArtifacts 'target/*.jar' } }
        }
    }


Build Triggers in Jenkins

• Git Push Trigger: Builds start immediately after code is pushed.
• Webhook Trigger: GitHub notifies Jenkins automatically.
• Scheduled Build: Using Cron syntax (e.g., 0 2 * * * for daily 2 AM builds).
• Manual Trigger: Triggered via the "Build Now" button.

Build Failure Handling

Jenkins logs errors in Console Output. You can integrate notifications with:

• Email
• Slack
• Microsoft Teams

Jenkins Build Best Practices

• Keep Builds Fast: Use parallel execution and build caching.
• Clean Workspace: Use cleanWs() to avoid leftovers.
• Versioning: Use clear version numbers (e.g., webapp-1.0.1.jar).
• Security: Always use Jenkins Credentials Manager for secrets.

Real-World CI/CD Build Automation

Workflow Summary: Developer Push → GitHub → Jenkins → Maven Build → Docker Image → Security Scan → Artifact Repository → Production.

Testing Automation in Jenkins

What is Testing Automation?

Testing Automation is the process of using software tools and scripts to automatically execute tests, compare actual results with expected results, and generate reports without manual intervention. In Jenkins CI/CD pipelines, automated testing ensures that every code change is validated before it is deployed to production.

Testing Automation in DevOps Pipeline

Pipeline Flow: Code Commit → GitHub → Jenkins Build → Automated Testing (Unit, Integration, API, Security, Performance) → Deployment.

Why Testing Automation is Important?

Manual testing is time-consuming, prone to human error, and fails to keep up with frequent releases. Automation provides:

• Efficiency: Faster testing cycles.
• Quality: Continuous quality checking and early bug detection.
• Reliability: Consistent and repeatable release processes.

Jenkins Testing Automation Architecture

The architecture allows Jenkins to trigger various test suites on Build Agents, capture the output, and make a decision to proceed with deployment based on the Test Reports.

Types of Automated Testing

Jenkins supports various test types to ensure complete application health:

1. Unit Testing

Validates individual functions or components. Tools: JUnit, PyTest.

@Test public void testLogin() { assertEquals(true, login()); }

2. Integration Testing

Tests the communication between components, such as the application and the database. Tools: JUnit, TestNG.

3. Functional Testing

Checks application features from a user perspective (e.g., Login, Checkout). Tools: Selenium, Cypress, Playwright.

4. API Testing

Tests backend services and REST APIs to ensure correct data exchange. Tools: Postman, REST Assured, SoapUI.

5. Security Testing

Checks for vulnerabilities and secret leaks. Tools: SonarQube, OWASP Dependency Check, Trivy.

6. Performance Testing

Evaluates application speed and scalability under load. Tools: JMeter, Gatling, LoadRunner.

Summary

Testing Automation is the backbone of a successful CI/CD pipeline. By integrating Unit, Functional, API, Security, and Performance tests into Jenkins, DevOps engineers ensure that only high-quality, bug-free code reaches the production environment.

Testing Stages in Pipeline

A standard Jenkins testing pipeline consists of sequential stages to ensure code health:

• Stage 1: Checkout Code: git 'https://github.com/company/app.git'
• Stage 2: Build Application: sh 'mvn clean package'
• Stage 3: Run Tests: sh 'mvn test'
• Stage 4: Publish Results: Using junit 'target/surefire-reports/*.xml' in the post block.

Full Testing Pipeline Example

    pipeline {
        agent any
        stages {
            stage('Build') { steps { sh 'mvn clean package' } }
            stage('Unit Testing') { steps { sh 'mvn test' } }
            stage('Security Scan') { steps { sh 'trivy image myapp' } }
            stage('Deploy') { steps { echo "Deploying Application" } }
        }
    }


Testing Tools Integration

Jenkins + Selenium Automation

Jenkins triggers Selenium scripts to perform browser-based functional testing:

    stage('Selenium Test') {
        steps { sh 'python selenium_test.py' }
    }


SonarQube Code Quality Testing

Workflow: Commit → Jenkins → SonarQube Analysis → Quality Gate → Deploy/Reject.

    stage('Code Analysis') {
        steps { sh 'sonar-scanner' }
    }


Summary: By integrating these testing tools directly into the Jenkins pipeline, DevOps teams achieve an automated "Quality Gate," ensuring that only secure, tested, and high-performance code proceeds to deployment.

Testing Container Images

Testing in Docker ensures that the containerized application is secure and functional before it reaches production. The workflow is as follows:

1. Build: docker build -t webapp .
2. Security Scan: trivy image webapp
3. Push: Upload the verified image to the Container Registry.

Automated Testing Reports in Jenkins

Jenkins provides detailed visibility into the health of your application through:

• Dashboard: Visual representation of pass/fail rates.
• Failed Details: Direct links to logs where tests failed.
• History: Trend analysis of build stability over time.

    Build #25:
    ✔ Unit Tests: 250 Passed
    ✔ API Tests: 80 Passed
    ✘ Security Tests: 2 Failed
    Status: FAILED


Testing Automation Best Practices

• Test Early: Integrate testing immediately after the build stage.
• Automate Everything: Use Git webhooks and Pull Request triggers to run tests automatically.
• Maintain Test Code: Store your testing scripts inside the same Git repository as your application code.
• Quality Gates: Define rules such as "Code Coverage > 80%" or "Security Issues = 0" to block failing builds.
• Parallel Testing: Use Jenkins agents to run Browser, API, and Security tests simultaneously to save time.

Real-World CI/CD Testing Architecture

In a production environment, this architecture acts as a Quality Gate. Only after Unit Tests, Selenium Tests, and Security Scans are passed does Jenkins approve the deployment to Docker/Kubernetes environments.

Summary

Testing Automation is the foundation of modern DevOps. By combining Jenkins with Docker and automated testing tools, teams ensure that every release is secure, reliable, and high-quality. This approach enables rapid deployment without compromising on stability.

Deployment Automation in Jenkins

What is Deployment Automation?

Deployment Automation is the process of releasing applications, configurations, and infrastructure changes to different environments without manual intervention. It is the final and most critical phase of the Continuous Deployment (CD) pipeline.

Deployment Automation Workflow

Workflow: Git Push → GitHub → Jenkins Build → Automated Tests → Artifact Creation → Deployment → Verification.

Why Deployment Automation is Important?

Manual deployments are prone to human error and inconsistency. Automation offers:

• Faster Releases: Automated code-to-production cycles.
• Repeatability: Same process for every deployment.
• Automated Rollback: Instant recovery in case of failures.
• Scalability: Easily deploy to multiple environments/clusters.

Jenkins Deployment Architecture

Jenkins Controller acts as the orchestrator, while Jenkins Agents perform the deployment tasks to Docker, Kubernetes, or Cloud environments.

Deployment Environments Flow

Applications are promoted through stages to ensure quality:

Developer → Dev Env → Testing Env → Staging → Production

Jenkins Deployment Pipeline Stages

1. Checkout Code: git 'https://github.com/company/app.git'
2. Build Application: sh 'mvn clean package' (Creates application.jar)
3. Testing: sh 'mvn test' (Ensures quality before release)
4. Package Application: docker build -t webapp:v1 . or helm package
5. Deploy: Executing commands like kubectl apply -f deployment.yaml or restarting services.

1. SSH Deployment

Deploy application directly to a Linux server using SSH.

stage('Deploy') {
    steps {
        sh '''
        scp app.jar user@server:/app/
        ssh user@server "systemctl restart app"
        '''
    }
}


2. Docker Deployment

Jenkins builds, tags, and runs containers automatically.

stage('Docker Deploy') {
    steps {
        sh '''
        docker build -t webapp .
        docker run -d -p 80:80 webapp
        '''
    }
}


3. Kubernetes Deployment

Modern cloud-native deployment using orchestrators.

stage('Kubernetes Deploy') {
    steps {
        sh 'kubectl apply -f deployment.yaml'
    }
}


Kubernetes Deployment Example

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: webapp
spec:
  replicas: 3
  selector:
    matchLabels:
      app: webapp
  template:
    metadata:
      labels:
        app: webapp
    spec:
      containers:
      - name: webapp
        image: webapp:v1
        ports:
        - containerPort: 80


Command to deploy: kubectl apply -f deployment.yaml

4. Cloud Deployment

Jenkins manages deployments across AWS, Azure, and Google Cloud using provider credentials to manage EC2, ECS, or EKS resources.

Jenkins Deployment Strategies

1. Jenkins with Ansible

Ansible is used for configuration management and application deployment across multiple servers.

    stage('Deploy') {
        steps {
            sh 'ansible-playbook deploy.yml'
        }
    }


2. Jenkins with Terraform

Automating infrastructure provisioning (Infrastructure as Code) using Terraform.

    stage('Infrastructure') {
        steps {
            sh '''
            terraform init
            terraform apply -auto-approve
            '''
        }
    }


3. Deployment Rollback

If a deployment fails, Jenkins initiates a rollback to the previous stable state.

Kubernetes Example: kubectl rollout undo deployment/webapp

4. Deployment Notifications

Jenkins keeps teams updated via:

• Email, Slack, and Microsoft Teams integration.

    Deployment Status:
    Application: WebApp | Env: Production | Status: SUCCESS


5. Deployment Best Practices

• Use IaC: Standardize with Terraform, Ansible, or CloudFormation.
• Secure Credentials: Always use Jenkins Credentials Manager; never hardcode tokens or passwords.
• Pre-Deployment Testing: Follow the pipeline: Build → Test → Security Scan → Deploy.
• Logs: Maintain logs for tracking who, when, which version, and status.

6. Real-World Jenkins Deployment Architecture

A typical enterprise pipeline integrates CI (Jenkins) with Provisioning (Terraform) and Orchestration (Kubernetes) to deliver high-quality software to production.

Summary

Deployment Automation in Jenkins simplifies the release process by integrating tools like Docker, Kubernetes, Terraform, and Ansible. It is a critical skill for DevOps Engineers to achieve zero-downtime, scalable, and secure production releases.

Jenkins Backup & Recovery

What is Jenkins Backup & Recovery?

Jenkins Backup & Recovery is the critical process of protecting Jenkins configurations, job definitions, pipelines, plugins, credentials, and build data. A robust backup strategy ensures that Jenkins can be fully restored in the event of unforeseen failures, including:

• Server crashes or hardware/disk failures.
• Data corruption or accidental deletion.
• Security incidents requiring system re-installation.
• System migration to a new server or cloud environment.

Importance: A well-defined backup strategy guarantees business continuity and minimizes downtime for your CI/CD pipelines.

Jenkins Data Architecture

Jenkins stores almost all its vital configuration and application data within the Jenkins Home Directory. Backing up this specific directory is the foundation of any disaster recovery plan.

Default Location: /var/lib/jenkins

Directory Structure Overview:

/var/lib/jenkins
├── jobs/           # Project configurations and job histories
│   ├── Project-A/
│   └── Project-B/
├── workspace/      # Working directory for active builds
├── plugins/        # Installed Jenkins plugins
├── users/          # User profiles and records
├── secrets/        # Encryption keys and sensitive data
├── credentials.xml # Global credentials storage
├── config.xml      # Core system configuration
└── builds/         # Build history and logs


What Should Be Backed Up?

To ensure a full recovery, you must back up the core components of the Jenkins Home Directory. Here is the breakdown of the essential items:

1. Jenkins Configuration

This includes the primary system settings that define how your Jenkins instance behaves.

• Contents: Global settings, security configurations, and system parameters.
• File: config.xml

2. Jenkins Jobs

Every job definition and build configuration is stored here. If this folder is lost, all job history and project setups are gone.

• Location: /var/lib/jenkins/jobs/
• Structure Example: Each folder represents a project containing its specific config.xml.

3. Jenkins Pipelines

Pipelines are the heart of automation. While Jenkinsfile often resides in Git, the Jenkins server also stores:

• Pipeline execution history.
• Shared library configurations.
• Specific environment pipeline settings.

4. Plugins

Ensures that your Jenkins instance retains its functionality upon restoration.

• Location: /var/lib/jenkins/plugins/
• Examples: git.jpi, docker.jpi, kubernetes.jpi.

5. Credentials

Crucial: These are the sensitive secrets that provide Jenkins access to external resources.

• Contents: SSH keys, AWS access tokens, GitHub personal access tokens, and passwords.
• Files: credentials.xml and the /secrets/ folder.

6. User Information

Contains the user records, profiles, and permissions (RBAC) configured within Jenkins.

• Location: /var/lib/jenkins/users/

Pro-Tip: Always ensure the /secrets/ directory is backed up securely, as it contains the keys required to decrypt the sensitive information in credentials.xml.

Jenkins Backup Methods

1. Manual File System Backup

The simplest approach involves creating a compressed archive of the Jenkins Home directory.

# Stop Jenkins to ensure data integrity
sudo systemctl stop jenkins

# Create compressed backup
sudo tar -czvf jenkins-backup.tar.gz /var/lib/jenkins

# Restart Jenkins
sudo systemctl start jenkins


Result: A portable file jenkins-backup.tar.gz ready for storage.

2. Using Rsync Backup

Rsync is ideal for remote backups, offering incremental updates to save time and bandwidth.

rsync -avz /var/lib/jenkins/ backup-server:/backup/jenkins/

Benefits: Faster performance and efficient use of storage space.

3. Jenkins ThinBackup Plugin

The ThinBackup plugin provides an automated, Jenkins-native way to manage backups without needing shell access.

• Installation: Manage Jenkins → Manage Plugins → Search 'ThinBackup'.
• Key Features:
  • Automated scheduling of backups.
  • Selective backup of job configurations and system settings.
  • Direct restore functionality from the UI.

4. Cloud Backup

For long-term retention, store backups in cloud object storage like AWS S3, Azure Storage, or Google Cloud Storage.

Example Workflow:

1. Jenkins generates the backup archive.
2. An automated script uploads the archive to an S3 Bucket.
3. Lifecycle policies move files to "Glacier" for long-term, cost-effective storage.

Jenkins Backup Automation

1. Jenkins Backup Script (jenkins_backup.sh)

Using a shell script is the most reliable way to perform manual or automated backups of the JENKINS_HOME directory.

#!/bin/bash

# Configuration
DATE=$(date +%F)
BACKUP_DIR="/backup"
JENKINS_HOME="/var/lib/jenkins"

# Create compressed archive
tar -czf $BACKUP_DIR/jenkins-$DATE.tar.gz $JENKINS_HOME

echo "Backup completed successfully on $DATE"


Execution Steps:

1. Save the file as jenkins_backup.sh.
2. Make the script executable: chmod +x jenkins_backup.sh
3. Execute: ./jenkins_backup.sh

2. Automate Backup Using Cron

To ensure your data is safe without manual intervention, schedule the backup using the Linux crontab.

Steps to schedule:

1. Open cron editor: crontab -e
2. Add the following line to schedule a daily backup at 2:00 AM:

0 2 * * * /scripts/jenkins_backup.sh

Automation Workflow:

1. Trigger: Clock hits 2:00 AM every day.
2. Action: Cron executes jenkins_backup.sh.
3. Process: Jenkins data is compressed and moved to the designated backup directory.

Jenkins Recovery Process

Scenario: Jenkins Server Failure

Recovery steps:

Step 1: Install Jenkins on New Server

Prepare the new environment by installing Java and the Jenkins package.

sudo apt update
sudo apt install openjdk-17-jdk -y
sudo apt install jenkins -y


Step 2: Stop Jenkins

Ensure the Jenkins service is not running before overwriting the data directory.

sudo systemctl stop jenkins

Step 3: Restore Jenkins Backup

Extract your backup archive to the system root to restore the /var/lib/jenkins directory.

sudo tar -xzvf jenkins-backup.tar.gz -C /

Step 4: Fix Permissions

It is vital to ensure that the Jenkins service owns its home directory to avoid access errors.

sudo chown -R jenkins:jenkins /var/lib/jenkins

Step 5: Start Jenkins

Restart the service and confirm it is running correctly.

sudo systemctl start jenkins
sudo systemctl status jenkins


Step 6: Verify Recovery

After the service is up, perform a sanity check on the critical components:

• Jobs & Dashboard: Check the Jenkins dashboard to ensure all projects are available.
• Plugins: Navigate to Manage Jenkins → Plugins to verify that all plugins are active.
• Credentials: Verify that sensitive data is loaded correctly:
  • GitHub tokens
  • SSH keys
  • Cloud service credentials

Jenkins Disaster Recovery

Disaster Recovery Architecture

A resilient setup ensures that data flows from the Production Jenkins server to both Local and Cloud backups, allowing for a seamless transition to a Disaster Recovery Server if the main instance fails.

Jenkins Backup with AWS S3

Automate your off-site storage by pushing backups to an S3 bucket.

aws s3 cp jenkins-backup.tar.gz s3://company-jenkins-backup/

Jenkins Recovery Best Practices

• Test Restore: Always verify your backup by restoring it to a test server.
• Versioned Backups: Use timestamps (e.g., jenkins-backup-2026-07-01.tar.gz).
• Encryption: Secure sensitive backups with gpg -c.
• Access Control: Secure local files with chmod 600.

Jenkins Backup in Kubernetes

For Jenkins on Kubernetes, focus on snapshots of the Persistent Volume (PV) that holds the Jenkins Home directory.

Jenkins Backup Tools

Backup & Recovery Checklist

• ✅ Backup /var/lib/jenkins
• ✅ Store credentials securely
• ✅ Store backups off-site (Cloud)
• ✅ Automate with Cron
• ✅ Document the recovery procedure

Summary

Professional DevOps teams rely on automated backups, off-site storage, and regular disaster recovery drills to ensure 99.9% uptime. The core of any recovery is the Jenkins Home Directory, which must be backed up consistently and verified through testing.

Questions & Answers

pipeline {
  agent any
  stages {
    stage('Build') {
      steps {
        echo 'Building Application'
      }
    }
  }
}


Installation & Configuration

Jenkins Jobs

GitHub Integration

Build Automation

Testing Automation

Docker Integration

Kubernetes Deployment

Jenkins Security

Jenkins Shared Libraries

Jenkins Backup and Recovery

Advanced Jenkins Concepts

CI/CD Real World Questions

Interview Questions
